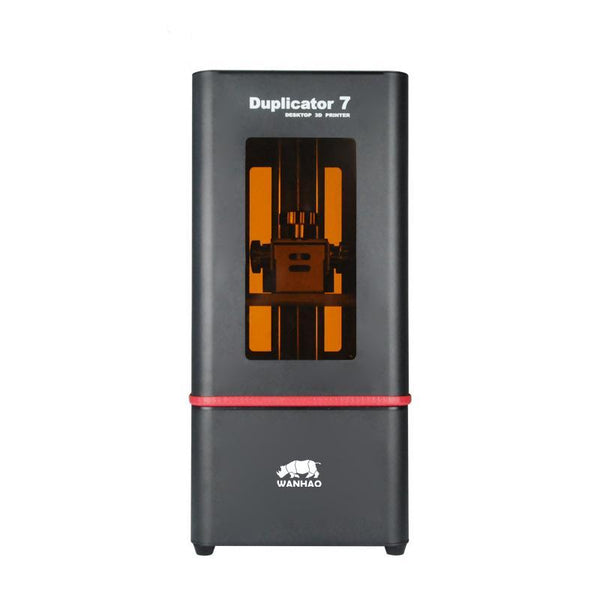

Wanhao Duplicator 7 UV DLP Resin 3D Printer v1.5
FREE SHIPPING WORLD WIDE!*
USA warehouse option ships out same business day.
China Warehouse Lead Time: 10+ days
To add Wanhao brand resin to your order click here.
Check out the new Duplicator 7 Plus here!
The newest offering from Wanhao is the most affordable DLP 3D Printer on the market today!
With the Wanhao Duplicator 7 3D printer you will be able to create stunning prints at just 35 microns of layer resolution with a 120x70x200mm build volume. This Wanhao resin printer is perfect for those who need high quality prints that just cannot be achieved by traditional FDM 3D printing technology.
For many years DLP 3D printing technology was only available to professionals who can afford to pay thousands of dollars for a machine that can produce production ready quality prints. But now, with the introduction of the Wanhao Duplicator 7, you will be able to achieve the same professional quality for a fraction of the price.
The Wanhao Duplicator 7 3D printer comes with a sample 200ml bottle of resin.
Add the D7 Box for tetherless operation!
The Wanhao D7 Box allows your Duplicator 7 to print without the need of a computer. This box has an HDMI output along with a USB port for use with a flash drive. It includes Wifi NanoDLP support. Now you no long need to have a dedicated computer to print with the Duplicator 7!
Version v1.5 Updates:
Version v1.4 Updates:
- • Tabs cut off UV Led to keep from shorting.
- • Power button moved to the back of the printer with the other cable connectors.
- • Changed Delrin Z Nut (plastic) to a brass anti-backlash nut for more precise movement.
- • UV Cooling fan (60mm) and heatsink size increased for better cooling.
- • New moulded reflector has more reflection and less scratches.
- • New Internal 70W Power Supply (no more external power supply).
- • Z coupler has been changed to a better Clamping style instead of using setscrews to secure the rod (for better concentricity).
- • Even more vents have been added to the back of the printer for better airflow.
- • Build plate is now machined for +-0.03mm tolerance to ensure flatness.
- • A secondary 60mm cooling fan was added to the side to ensure the motherboard is cooled and the case is ventilated.
- • UV LED wires are soldered to the LED body instead of tabs.
Specifications
- Max Printing speed 30mm/hour
- Max Printable area 120*68*200mm(L*W*H)
- Resin Type 405nm uv resin
- Resolusion 2560*1440
- Accurcy Z: 0.004MM
- Layer Thickness 0.035~0.5mm
- Weight 12KGS
Click here for Software and Documentation
