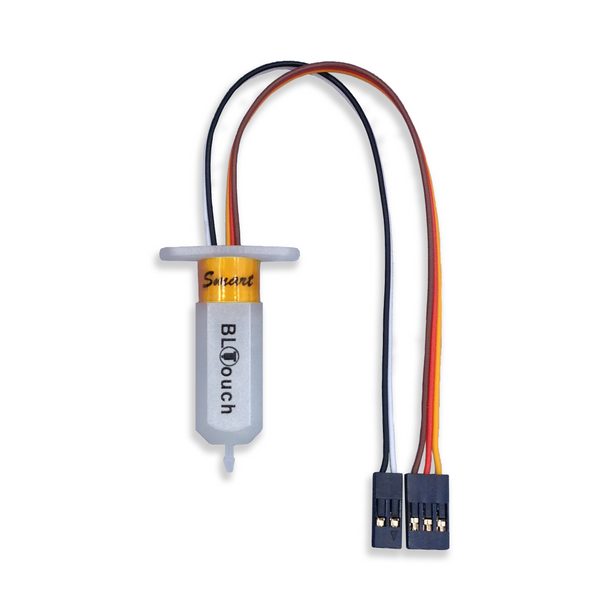

ANTCLABS BLTouch Auto Bed Leveling Sensor
Official BLTouch US Reseller
FREE US Shipping on the BLTouch!
Ships out same business day from US!
Main functions and controls of BLTouch are same as usual auto bed leveling sensor, consists of RC servo and micro switch.
Thus, BLTouch can be applied on almost every board.
BLTouch fulfilled simple structure and high precision by using progressively designed solenoid and hall sensor, and aimed user convenience and enjoyable printing by adding many smart functions, self-test, alarm, alarm release, test mode for M119.
- BLTouch can be easily applied, since it has a small and simple structure. Gathering information & firmware setting will be an easy task, because BLTouch works as usual auto bed leveling sensor.
- Self-test : The push pin is operated three times to test when the power is on
- Alarm : The LED light blinks if a problem found on a self-test or on an operation
- BLTouch’s Standard Deviation in repeatability is around 0.005mm, at that precise. (refer to attached video)
BLTouch consists of Atmel ATtiny13A, solenoid, and a push pin.
Innovative Solenoid : Ultra Power Saving
On idle state, while the push-pin is whether pulled out or retracted, there are not any electric current flowing on solenoid, and standby electric current in the whole device is below 15mA on average, whereas on working state, while the pin is moving in sudden about 100ms, under 300mA flows in the device.
Low power consumption even further drops joule heating, preventing from heat problem.
Hall Sensor : Free Bed Selection
BLTouch does not uses either optical, nor proximity(inductive/capacitive) sensor.
BLTouch is controlled by hall effect, providing high precision. Thus the bed material can be selected freely.
Optimized structure : Larger Build Size
BLTouch is a small, and technology-intensive one. Build size can be set larger than other existing auto bed leveling sensor.
BLTouch uses existing RC Servo motor signal intactly, so just plug BLTouch on the same pins after removing servo motor.
