CraftBot 3 3D Printer
FILAMENT MONITORING SYSTEM
The Craftbot 3 has been subtitled "The Supervisor" and the Filament Monitoring System (or FMS) is the reason. With this exciting new feature, the Craftbot 3 will watch your filament's feed and level , so you don't have to!
The FMS supervises filament consumption closely, making sure the print pauses when the spool runs out, but it also troubleshoots immediately if your high accuracy 3D printer experiences a jam. Your phone will get you a message so you can intervene if you want.
This FMS turns your Craftbot 3 from a printer to a partner!
INDEPENDANT DUAL EXTRUSION
IDEX is an amazing technology that instantly raises a printer's power and utility! We all know the glory of dual printing--having two different spools extruding in the same print. But with those two print heads being built separately from each other, each print head can get out of the way as the other does its work.
The dual extrusion is also perfect for printing with a soluble support material like PVA, which allows support columns on your print to be removed completely, and your final print to look gorgeous.
CRAFTBOT 3 SPECS
- Total Print Area: 374mm x 250mm x 250mm (14.7" x 9.8" x 9.8")
- Dual Print Mode: 270mm x 250mm x 250mm (10.6" x 9.8" x 9.8")
- Single Print Mode: 322mm x 250mm x 250mm (12.7" x 9.8" x 9.8")
- Multi-Part Print Mode: 187mm x 250mm x 250mm (7.4" x 9.8" x 9.8")
- Hotend Max Temp: 300C
- Top Print Speed: 200 mm/s
- Print Tolerance: X,Y: 4 micron; Z: 2 micron
- Layer Thickness: 50 micron
- Filament Diameter Size: 1.75 mm
- Capable Materials: PVA, PLA, ABS, HIPS, PET, Nylon, ASA, TPU, PC
IMPROVED DESIGN
The Craftbot 3 doesn't just add amazing new features, rarely seen in the desktop 3D printing world, it also improves upon what they've done before.
The new High-Accuracy Ball Screws improve printing quality, and the finely tuned motor control makes printing as quiet as a mouse.
Even their part cooling fan in the hotends got an overhaul, boasting optimized object cooling technology. Your parts will come out beautifully, and will be removed cleanly form the print bed with a snap!
Â
CRAFTBOT 3 3D PRINTER FEATURES:
- PRINTING AREA
Total printing area:Â 37,4 X 25 X 25 CM (Â 14.72 x 9.84 x 9.84 in)
Printing modes:
- Dual printer head:Â 27 X 25 X 25 CM (Â 10.63 x 9.84 x 9.84 in)
- Single printer head:Â 32,2 X 25 X 25 CM (Â 12.68 x 9.84 x 9.84 in)
- Multi-part printing:Â 18,7 X 25 X 25 CM (Â 7.36 x 9.84 x 9.84 in)
- FILAMENT MONITORING SYSTEM
The filament monitoring system (FMS) of the new CraftBot3 supervises filament consumption, starts immediate troubleshooting when a filament jam is detected and messages the user in case there’s a need for intervention.
-
INDEPENDENT DUALÂ EXTRUSION (IDEX)Â SYSTEM
The two separated printer heads make it possible to print two objects at a time, as well as PVA printing that makes printing object supports an easy task as you can simply dissolve the support in water after printing is finished. Silicone discs help to prevent unwanted excess filament material from sticking to your prints. They achieve this by wiping the nozzle during the period between the changing of the heads.
- NEW MOTOR CONTROL FOR QUIET PRINTING
Thanks to the new motor control, 3D printing is quieter than ever.
- FULL METAL HOTEND
CraftBot3 is able to print at a temperature as high as 300°C, making it perfect to use with more special filaments as well.
- LED STATUS INDICATORS
The new 3D printer by CraftBot uses different colored
LED status indicators to signal the current status of printing that can be customized for an even better experience.
- HIGH ACCURACY BALL SCREWS
CraftBot3 is equipped with high-accuracy ball screws that make the printing quality even more astounding.
- OPTIMIZED OBJECT COOLING TECHNOLOGY
The modified object cooling technology of the CraftBot3 makes quality printing of even the smallest objects a breeze.

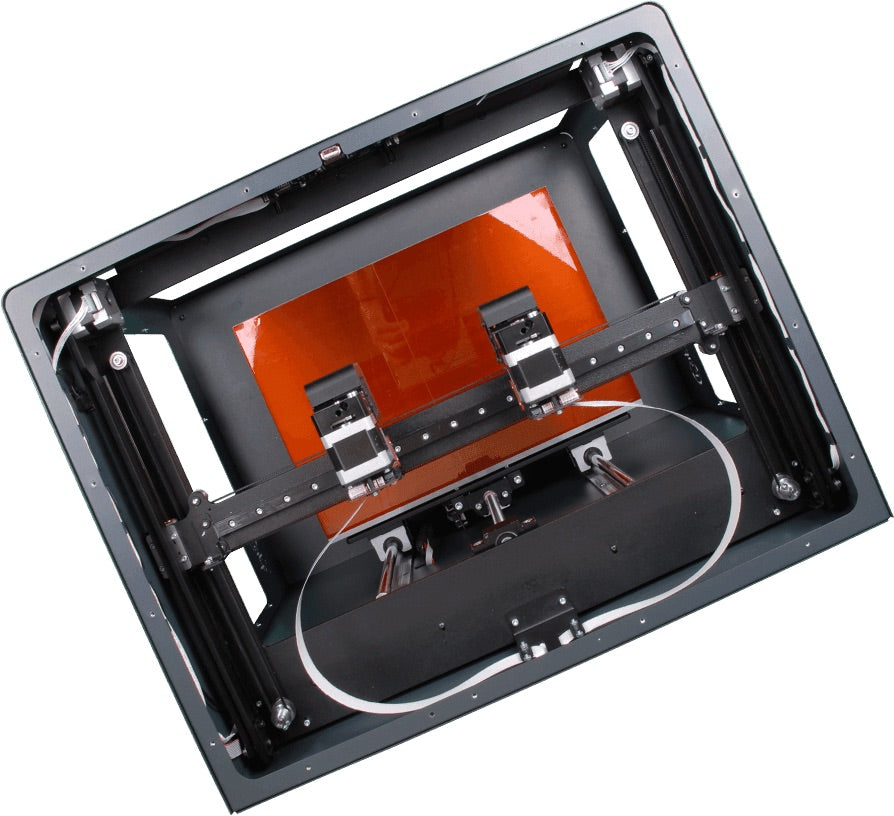

- XY UNIT
The removable horizontal platform makes servicing the printer faster and more efficient.
- HEATABLE & REMOVABLE BUILD PLATFORM
Heating prevents warping and sticking. The removable build platform is easier to clean.
- PRINT PAUSE & RESUME
You can pause or resume printing and change the filament at any time. Even blackouts are no longer an issue!
- WIFI CONNECTIVITY
With apps available for iOS and Android devices, users can upload 3D projects to their CraftBot3, start and stop the printing process, control the heat settings.
- BUILT-IN COUNTER
Logs the time of operation and filament usage.
- PRINTING ACCURACY
CraftBot3 is capable of 50 micron/layer resolution (with 0.25 mm nozzle) providing excellent print quality.
CRAFTWARE SLICER SOFTWARE
THE PERFECT MATCH WITH YOUR CRAFTBOT 3 PRINTER
IMPROVED VISUALIZATION
You can always be aware of your CraftBot 3's available work area.
SPECIAL DUAL EXTRUDER MODES AND FUNCTIONS
Utilize all the special printing functions (parallel, mirror manufacturing) and special settings.
VARIOUS HEAD CHANGE STRATEGIES AND STYLES
You can select the head change strategy and fine tune the head change parameters.
TIME-SAVING AND ECONOMIC PRINTING
Print only the connection between the model and the support bar with the second head loaded with water dissolvable filament.
AUTOMATIC PRIME PILLAR
This function ensures you that the next selected head always has consistent material flow right after the head change.
DECOMPOSE COMPOSITE MODEL FILES
Craftware aids you to find an easy way to discover the possibilities of dual material printing.
CUT BY PLANE
If you don't have the proper multi-material model file, simply cut your model and colorize it!
