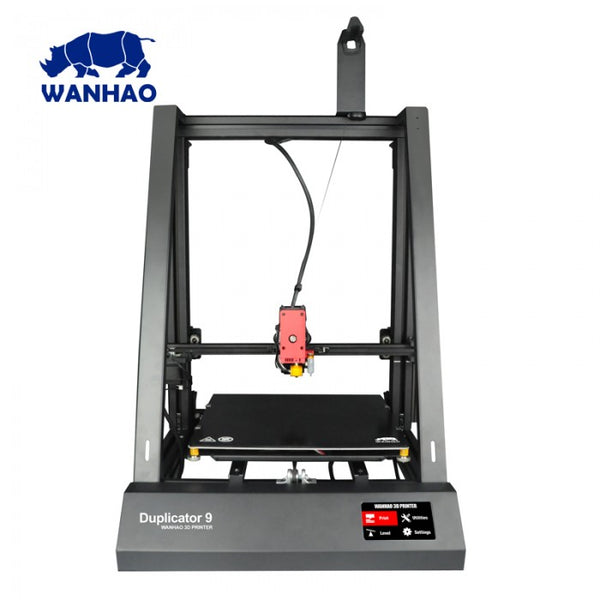

Wanhao Duplicator 9 Mark II(2) Large Format 3D Printer
CHINA WAREHOUSE LEAD TIME: 14+ BUSINESS DAYS.
The Duplicator D9 from Wanhao is their newest FDM style large-scale 3D printer. The Wanhao Duplicator 9 Mark II features a touch screen, MK10 Extruder with full metal hot end, heated bed and anti-backlash rolling system. The printer will be available in three sizes (see below). The printer is made from machined metal brackets and extruded aluminum instead of the previous sheet metal designs.
Wanhao Duplicator 9 Mark 2 upgrades
Secured locking system
Self adjustable 4 roller system, Smoother, quieter
Customized cooling fan for more accuracy
One side Lattice 300,400(Double side printing bed) /PVC Mat only for 500 printing bed
Equipped with BLTouch auto smart leveling
D9 400/500 Dual Rail Y Axis
Adding PTFE Protection tube
Reinforced RIB strengthen bar for stability in large size printing
Dynamic Z offset adjustable during printing to enable the most accuracy layer thickness as you wish
Highlights:
2020 extruded aluminum precision frame, Linear guide rails, and v-slot bearing design
Anti-backlash rolling system used to minimize backlash (free movement between the lifting screw and nut) thus postion is firmly fixed during printing and producing stunning & finer prints with high accuracy & precision.
All Metal Hot end- Easy Maintenance, achieve cleaner prints,less ooze, lets you print at much higher temperature, Faster Extrusion rate, lower retraction amount
Large build sizes 300*400 mm/400*400 mm/500*500 mm/400*400
Resume Print, which stores the print information and position of the print head in case of power failure or similar
Integrated Smart Touch Screen display which allows you to control at ease, clean & better navigating user experience.
Closed PSU & Cable alignments are properly managed for rich experience out of the box & safer 3D Printing
Technical specifications:
| Primary attributes of the technology | Entry level printer.Fully assembled. Developed from Prusa i3. |
|---|---|
| Software | CURA, host by Repitator, Simplify 3D |
| Extruder system | MK10 extruder with full metal hot end |
| Material support | PLA, PVA, PEVA, Nylon,Any material melting<=300’C |
| Max printable area | 300*300*400mm/ 400*400*400mm / 500*500*500mm |
| Filament diameter | 1.75mm |
| Max printing speed | 70mm/s |
| Frame | Aluminum Chassis |
| With Insulate cover or not | Insulate Tent Available |
| Extruder Quantity | 1 |
| Accuracy | X 0.012mm Y 0.012mm Z 0.004mm |
| Net Weight(kg) | 20kg |
| Gross Weight(kg) | 22kg |
| Bed leveling | 4 Points leveling |
| Packing size(cm) | 60*50*35cm |
| Platform Holder | Steel frame holder |
| Rail locking system | Steel bolt locking frame |
| Layer Thickness | 100 micron- 400 micron |
| Platform | Aluminium platform W/ heating, |
| Resume printing | Can resume printing after power break |
| LCD display | English/Chinese/ customrized any language |
| Power supply unit | Inside 110 AND 250V(optional), 50/60Hz, 4.0A (input), and takes standard IEC cable |
| Typical application | A perfect printer for educators who intend to use the printers in technical industry. Great printer for DIY hobbist. |
